ML - Classification

Published

July 22, 2022

Modified

May 21, 2024

Abstract
We will look at the basic models for Classification of Data

A Childhood Game

Have you played a Childhood Game called 20 Questions? Someone has a “target” entity in mind ( a person or a thing or a literary character) and the others need to discover that entity by asking 20 questions.

  • How does one create questions in the game?
    • Categories?
    • Numbers? How?
    • Comparisons?
  • What sort of answers can you expect for each question?

Twenty Questions Game as a Play with Data…

Assuming we think of a 20Q Target as say, celebrity singer like Taylor Swift, or a cartoon character like Thomas the Tank Engine, what would an underlying “data structure” look like? We would ask Questions for instance in the following order to find the target of Taylor Swift:

  • Human?(Yes)
  • Living?(Yes)
  • Male?(No)
  • Celebrity?(Yes)
  • Music?(Yes)
  • USA?(Yes)

Oh…Taylor Swift!!!

Let us try to construct the “datasets” underlying this game!

name Occupation Sex Living Nationality genre pet
Taylor Swift Singer F TRUE USA country/rock Scottish Fold Cats
name Type Living human Nationality colour material
Thomas, the Tank Engine Cartoon Character FALSE FALSE UK blue metal

It should be fairly clear that the Questions we ask are based on the COLUMNs in the respective 1-row datasets! The TARGET Column in both cases is the name column.

What is a Decision Tree?

Can you imagine how the 20 Questions Game can be shown as a tree?

Each Question we ask, based on one of the Feature columns, begets a Yes/NO answer and we turn the left or right accordingly. When we arrive at the leaf, we should be in a position to guess the answer !

Twenty times 20 Questions !!

What if the dataset we had contained many rows, instead of just one row? How would we play the 20Q Game in this situation? Here is a sample of the famous penguins dataset:

species island bill_length_mm bill_depth_mm flipper_length_mm body_mass_g sex year
Adelie Torgersen 36.2 17.2 187 3150 female 2009
Gentoo Biscoe NA NA NA NA NA 2009
Gentoo Biscoe 45.7 13.9 214 4400 female 2008
Gentoo Biscoe 43.2 14.5 208 4450 female 2008
Adelie Dream 41.5 18.5 201 4000 male 2009
Adelie Dream 38.8 20.0 190 3950 male 2007
Gentoo Biscoe 45.5 14.5 212 4750 female 2009
Adelie Biscoe 38.2 18.1 185 3950 male 2007
Adelie Torgersen 39.0 17.1 191 3050 female 2009
Adelie Torgersen 41.1 17.6 182 3200 female 2007
Adelie Dream 39.2 18.6 190 4250 male 2009
Adelie Torgersen 42.8 18.5 195 4250 male 2008

As before, we would need to look at the dataset as containing a TARGET column which we want to predict using several other FEATURE columns. Let us choose species.

When we look at the FEATURE columns, We would need to formulate questions based on entire columns at a time. For instance:

  • “Is the bill_length_mm* greater than 45mm?” considers the entire bill_length_mm* FEATURE column
  • Is the sex female? considers the entire sex column

If the specific FEATURE column is a Numerical (N) variable, the question would use some “thresholding” as shown in the question above, to convert the Numerical Variable into a Categorical variable.

If a specific FEATURE column is a Categorical (C) variable, the question would be like a filter operation in Excel.

Either way, we end up answering with a smaller and smaller subset of rows in the dataset, to which the questions are answered with a Yes. It is as if we played many 20 Questions games in parallel, since there are so many simultaneous “answers”!

Once we exhaust all the FEATURE columns, then what remains is a subset (i.e. rows) of the original dataset and we read off the TARGET column, which should now contain a set of identical entries, e.g. “Adelie”. Thus we can extend a single-target 20Q game to a multiple-target one using a larger dataset. ( Note how the multiple targets are all the same: “Adelie”, or “Gentoo”, or “Chinstrap”)

This forms the basic intuition for a Machine Learning Algorithm called a Decision Tree.

Decision Tree in Orange

Let us visualize this Decision Tree in Orange. Look at the now famous penguins dataset, available here:

https://raw.githubusercontent.com/mwaskom/seaborn-data/master/penguins.csv

We see that there are three species of penguins, that live on three islands. The measurements for each penguin are flipper_length_mm, bill_length_mm, bill_depth_mm, and body_mass_g.

  1. Task 1: Create a few data visualizations for the variables, and pairs of variables from this dataset.

  2. Task 2: Can you inspect the visualizations and imagine how each of this dataset can be used in a 20 Questions Game, to create a Decision Tree for this dataset as shown below?

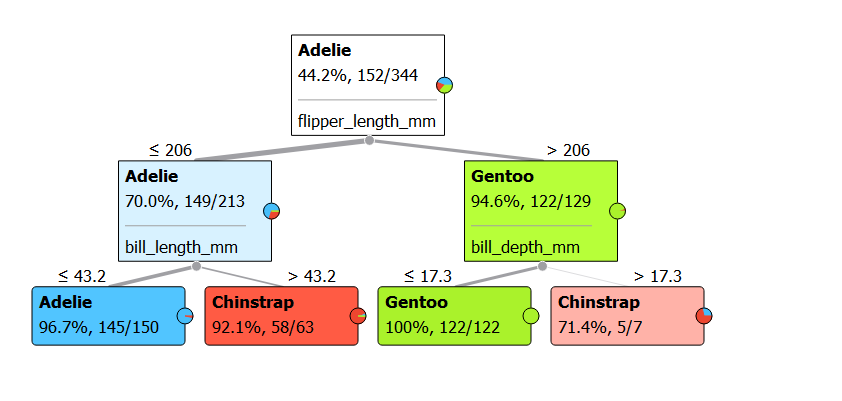

Penguins Decision Tree!

Penguins Decision Tree!

What did we learn?

  • The 20Q Game can be viewed as a “Decision Tree” of Questions and Answers,
  • Each fork in the game is a Question.
  • Depending upon whether the current answer is yes or no, we turn in one direction or the other.
  • Each of our questions is based on the information available in one or other of the columns!!
  • We arrive at a final “answer” or “target” after a particular sequence of yes/no answers. This is the one of the leaf nodes in the Tree.
  • The island and the species columns are categories and are especially suited to being the targets for a 20 Questions Game.
  • We can therefore use an entire column of data as our 20Questions target, rather than just one entity, person.

This is how we will use this Game as a Model for our first ML algorithm, classification using Decision Trees.

How do we Make Predictions using our Decision Tree

Our aim is to make predictions. Predictions of what? When we are given new unseen data in the same format, we should be able to predict TARGET variable using the same FEATURE columns.

NOTE: This that is usually a class/category (We CAN also predict a numerical value with a Decision Tree; but we will deal with that later.)

In order to make predictions with completely unseen data, we need to first check if the algorithm is working well with known data. The way to do this is to use a large portion of data to design the tree, and then use the tree to predict some aspect of the remaining, but similar, data. Let us split the penguins dataset into two pieces: a training set to design our tree, and a test set to check how it is working.

Download this penguin tree file and open it in Orange.

How good are the Predictions? What is the Classification Error Rate?

How Many Trees do we Need? Enter the Random Forest!

Check all your individual Decision Trees: do they ask the same Questions? Do they fork in the same way? Yes, they all seem to use the same set of parameters to reach the target. So they are capable of being “biased” and make the same mistakes. So we ask: Does it help to use more than one tree, if all the questions/forks in the Trees are similar?

No…we need different Trees to be able to ask different questions, based on different variables or features in the data. That will make the Trees as different as possible and so…unbiased. This is what we also saw when we played 20Q: offbeat questions opened up some avenues for predicting the answer/target.

A forest of such trees is called the Wild Wood a Random Forest !

An Introduction to Random Forests

In the Random Forest method, we do as follows:

  1. Split the dataset into training and test subsets (70::30 proportion is very common). Keep aside the testing dataset for final testing.
  2. Decide on a number of trees, say 100-500 in the forest.
  3. Take the training dataset and repeatedly sample some of the rows in it. Rows can be repeated too; this is called bootstrap sampling.
  4. Give this sampled training set to each tree. Each tree develops a question from this dataset, in a random fashion, using a randomly chosen variable. E.g. with penguins, if our target is species, then some trees will will use island, some others will use body_mass_g and some others may use bill_length_mm.
  5. Each tree will “grow its questions” in a unique way !! Since the questions are possibly based on a different variable at each time, the trees will grow in very different ways.
  6. Stop when the required accuracy has been achieved (the sets contain observations/rows from only one species predominantly)
  7. With the test set let each tree vote on which species it has decided upon. Take the majority vote.

Phew!!

Let’s get a visual sense of how all this works:

https://waternova.github.io/random-forest-viz/

Random Forest Classification for Heart Patients

Do you want to develop an ML model for heart patients? We have a dataset of heart patients at the University of California, Arvind Irvine ML Dataset Repository

Heart Patient Data. Import into Orange !!

What are the variables?

  1. (age): age in years
  2. (sex): 1 = male; 0 = female
  3. (cp): chest-pain type( 4 types, 1/2/3/4)
  4. (trestbps): resting blood pressure (in mm Hg on admission to the hospital)
  5. (chol) : serum cholesterol in mg/dl
  6. (fbs): (fasting blood sugar > 120 mg/dl) (1 = true; 0 = false)
  7. (restecg): resting electrocardiograph results (0 = normal; 1= ST-T wave abnormality; 3 = LV hypertrophy)
  8. (thalach): maximum heart rate achieved
  9. (exang): exercise induced angina (1 = yes; 0 = no) (remember Puneet Rajkumar)
  10. (oldpeak): ST depression induced by exercise relative to rest
  11. (slope): the slope of the peak exercise ST segment
    • Value 1: upsloping
    • Value 2: flat
    • Value 3: downsloping
  12. (ca): number of major vessels (0-3) colored by fluoroscopy
  13. (thal): 3 = normal; 6 = fixed defect; 7 = reversible defect
  14. (num) : the target attribute, diagnosis of heart disease (angiographic disease status)
    • Value 0: < 50% diameter narrowing
    • Value 1: > 50% diameter narrowing
      (in any major vessel: attributes 59 through 68 are vessels)

We will create a Random Forest Model for this dataset, and compare with the Decision Tree for the same dataset.

How good is my Random Forest?

  1. Classification Error
  2. Gini Impurity
  3. Cross Entropy
