Data

Abstract

The Science of Surprise

(a) Composition VIII

(b) Blue

Figure 1: Kandinsky: Abstract Paintings, or Data Visualizations?

Where does Data come from?

We will need to form a basic understanding of human curiosity and then of basic scientific enterprise. Let us look at the slides.

Why Visualize?

• We can digest information more easily when it is pictorial
• Our Working Memories are both short-term and limited in capacity. So a picture abstracts the details and presents us with an overall summary, an insight, or a story that is both easy to recall and easy on retention.
• Data Viz includes shapes that carry strong cultural memories; and impressions for us. These cultural memories help us to use data viz in a universal way to appeal to a wide variety of audiences. (Do humans have a gene for geometry?¹);
• It helps sift facts and mere statements: for example:

Figure 2: Rape Capital

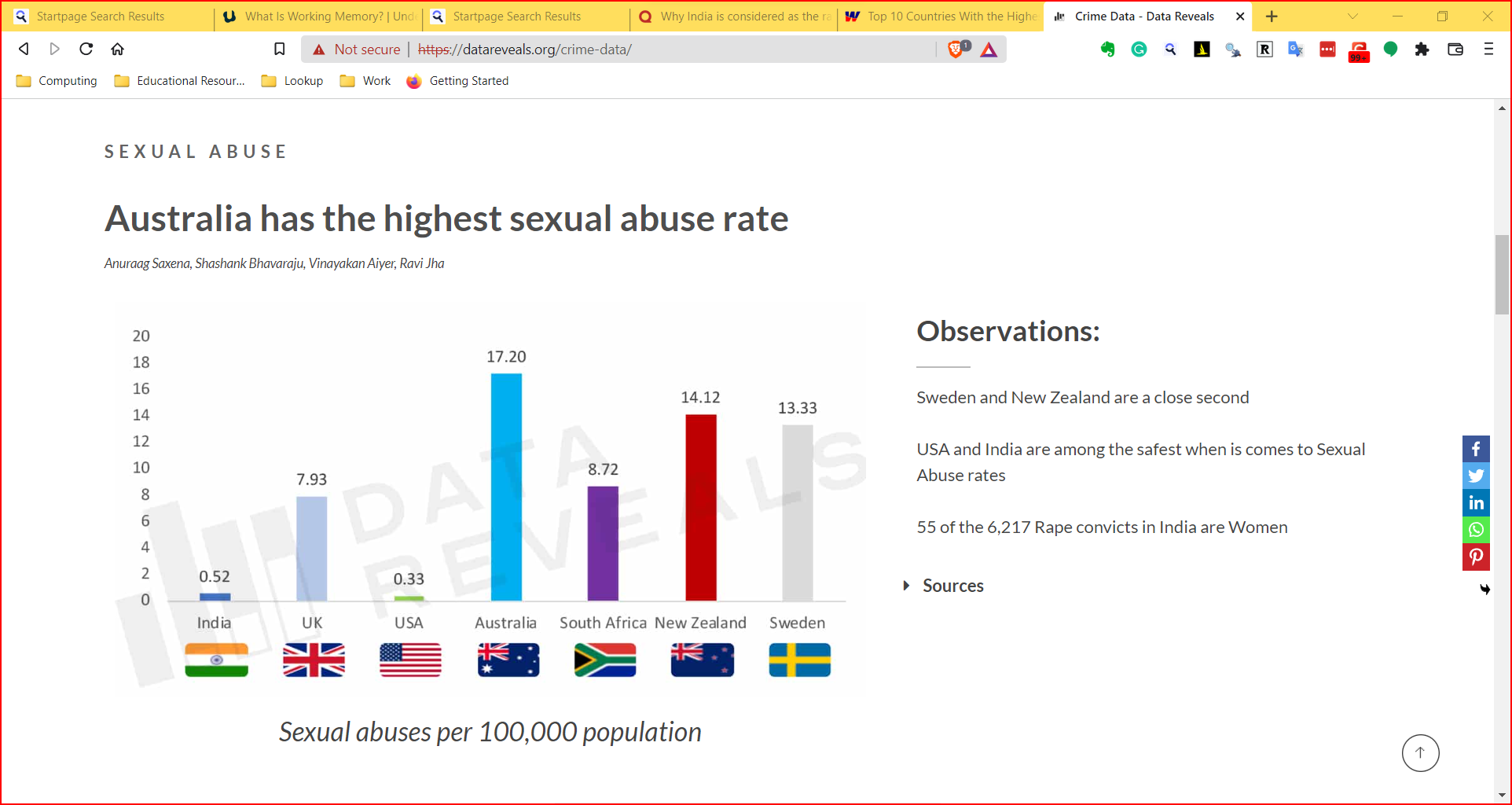

Figure 3: Data Reveals Crime

Why Analyze?

For us to draw good inferences and make actionable plans based on data, it has to satisfy specific statistical tests. These tests tell us how significant the data are and whether the data are telling us a story that can be justified, or it is just a random coincidence. Depending upon our Research Question, different statistical tests will be applicable.

What are Data Types?



Figure 4: Variable Types

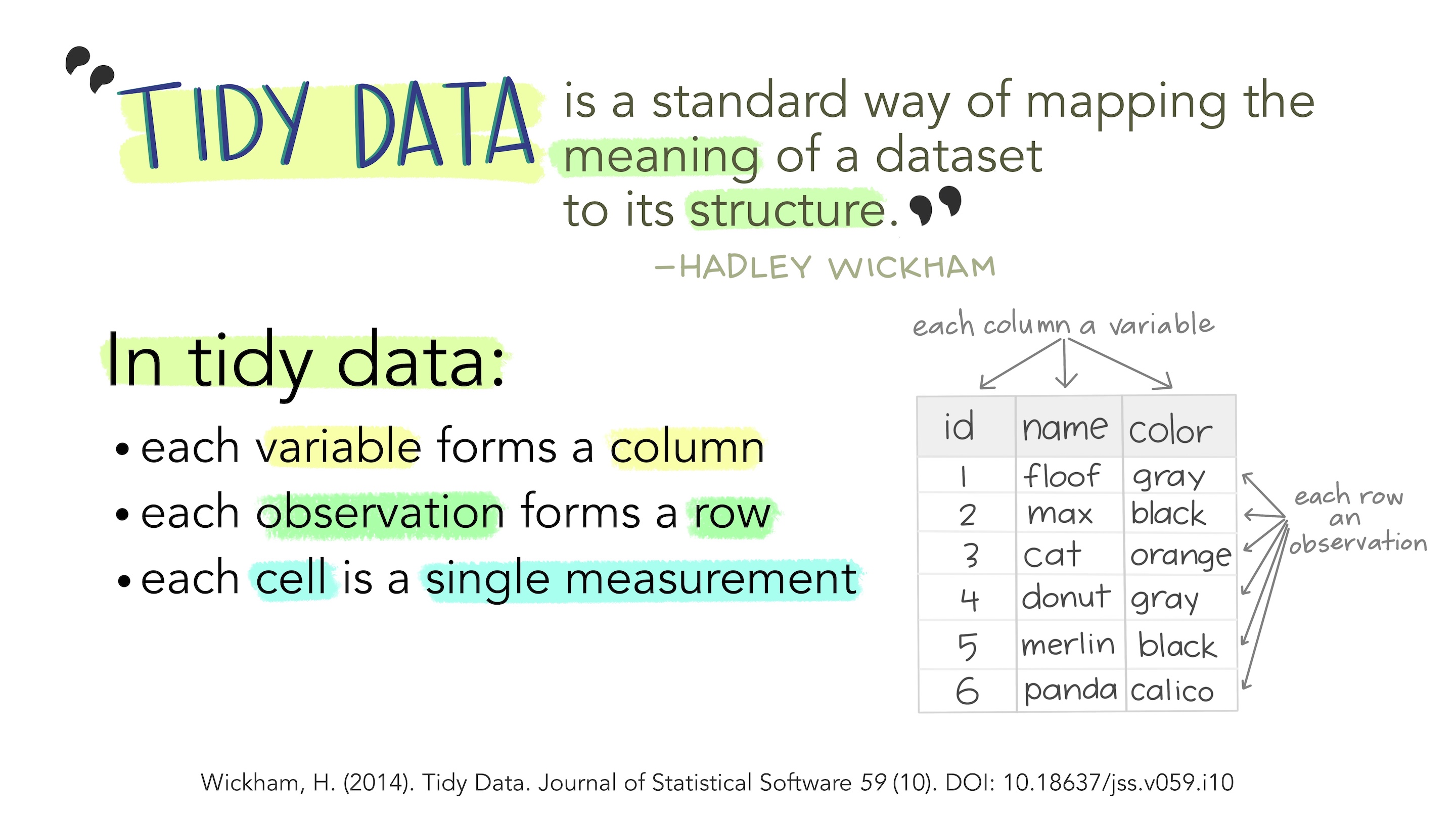

Figure 5: Tidy Data

ImportantTidy Data

Each variable is a column; a column contains one kind of data. Each observation or case is a row.

How do we Spot Data Variable Types?

By asking questions! Shown below is a table of different kinds of questions you could use to query a dataset. The variable or variables that “answer” the question would be in the category indicated by the question.

No	Pronoun	Answer	Variable/Scale	Example	What Operations?	What Human Purposes?
1	How Many / Much / Heavy? Few? Seldom? Often? When?	Quantities, with Scale and a Zero Value.Differences and Ratios /Products are meaningful.	Quantitative/Ratio	Length,Height,Temperature in Kelvin,Activity,Dose Amount,Reaction Rate,Flow Rate,Concentration,Pulse,Survival Rate	Correlation	NA
2	How Many / Much / Heavy? Few? Seldom? Often? When?	Quantities with Scale. Differences are meaningful, but not products or ratios	Quantitative/Interval	pH,SAT score(200-800),Credit score(300-850),SAT score(200-800),Year of Starting College	Mean,Standard Deviation	NA
3	How, What Kind, What Sort	A Manner / Method, Type or Attribute from a list, with list items in some " order" ( e.g. good, better, improved, best..)	Qualitative/Ordinal	Socioeconomic status (Low income, Middle income, High income),Education level (HighSchool, BS, MS, PhD),Satisfaction rating(Very much Dislike, Dislike, Neutral, Like, Very Much Like)	Median,Percentile	NA
4	What, Who, Where, Whom, Which	Name, Place, Animal, Thing	Qualitative/Nominal	Name	Count no. of cases,Mode	NA

As you go from Qualitative to Quantitative data types in the table, I hope you can detect a movement from fuzzy groups/categories to more and more crystallized numbers.

Figure 6: Type of Variables

Each variable/scale can be subjected to the operations of the previous group. In the words of S.S. Stevens

the basic operations needed to create each type of scale is cumulative: to an operation listed opposite a particular scale must be added all those operations preceding it.

Some Examples of Data Variables

NoteExample 1: AllCountries dataset

ABCDEFGHIJ0123456789

Country <fct>	Code <fct>	LandArea <int>	Population <dbl>	Energy <int>	Rural <dbl>	Military <dbl>	Health <dbl>	HIV <dbl>	Internet <dbl>
Afghanistan	AFG	652230	29.021	NA	76.0	4.4	3.7	NA	1.7
Albania	ALB	27400	3.143	2088	53.3	NA	8.2	NA	23.9
Algeria	ALG	2381740	34.373	37069	34.8	13.0	10.6	0.1	10.2
American Samoa	ASA	200	0.066	NA	7.7	NA	NA	NA	NA
Andorra	AND	470	0.084	NA	11.1	NA	21.3	NA	70.5
Angola	ANG	1246700	18.021	10972	43.3	NA	6.8	2.0	3.1
Antigua and Barbuda	ANT	440	0.087	NA	69.5	NA	11.0	NA	75.0
Argentina	ARG	2736690	39.883	76359	8.0	NA	13.7	0.5	28.1
Armenia	ARM	28480	3.077	2997	36.1	16.1	7.2	0.1	6.2
Aruba	ARU	180	0.105	NA	53.2	NA	NA	NA	22.8

Next

123456

...

22

Previous

1-10 of 213 rows | 1-10 of 19 columns

Questions

Q1. How many people in Andorra have internet access?
A1. This leads to the Internet variable, which is a Quantitative variable, a proportion.² The answer is $70.5\mathrm{\%}$. Q2. What would be the units for LifeExpectancy? A2. Decimal Years.

NoteExample 2:StudentSurveys

ABCDEFGHIJ0123456789

Year <fct>	Gender <fct>	Smoke <fct>	Award <fct>	HigherSAT <fct>	Exercise <dbl>	TV <int>	Height <int>	Weight <int>	Siblings <int>
Senior	M	No	Olympic	Math	10.0	1	71	180	4
Sophomore	F	Yes	Academy	Math	4.0	7	66	120	2
FirstYear	M	No	Nobel	Math	14.0	5	72	208	2
Junior	M	No	Nobel	Math	3.0	1	63	110	1
Sophomore	F	No	Nobel	Verbal	3.0	3	65	150	1
Sophomore	F	No	Nobel	Verbal	5.0	4	65	114	2
FirstYear	F	No	Olympic	Math	10.0	10	66	128	1
Sophomore	M	No	Olympic	Math	13.0	8	74	235	1
Junior	F	No	Nobel	Verbal	3.0	6	61	NA	2
FirstYear	F	No	Nobel	Math	12.0	1	60	115	7

Next

123456

...

37

Previous

1-10 of 362 rows | 1-10 of 18 columns

Questions

Q.1. What kind of students are these?
A.1. The variables Gender, and Year both answer to this Question. And they are both Qualitative/Categorical variables, of course.
Q.2. What is their status in their respective families?
A.2. Hmm…they are either first-born, or second-born, or third…etc. While this is recorded as a number, it is still a Qualitative variable³! Think! Can you do math operations with BirthOrder? Like mean or median?
Q.3.How big are the families?
A.3. Clearly, the variable that answers is Siblings and since the question is synonymous with “how many”, this is a Quantitative variable.

What is a Data Visualization?

Data Viz = Data + Geometry

Shapes

Data Visualization is the act of “mapping” a geometric aspect/aesthetic to a variable in data. The aesthetic then varies in accordance with the data variable, creating (part of) a chart.

What might be the geometric aesthetics available to us? An aesthetic is a geometric property, such as x-coordinate, y-coordinate, length/breadth/height,radius,shape,size, linewidth, linetype, and even colour…

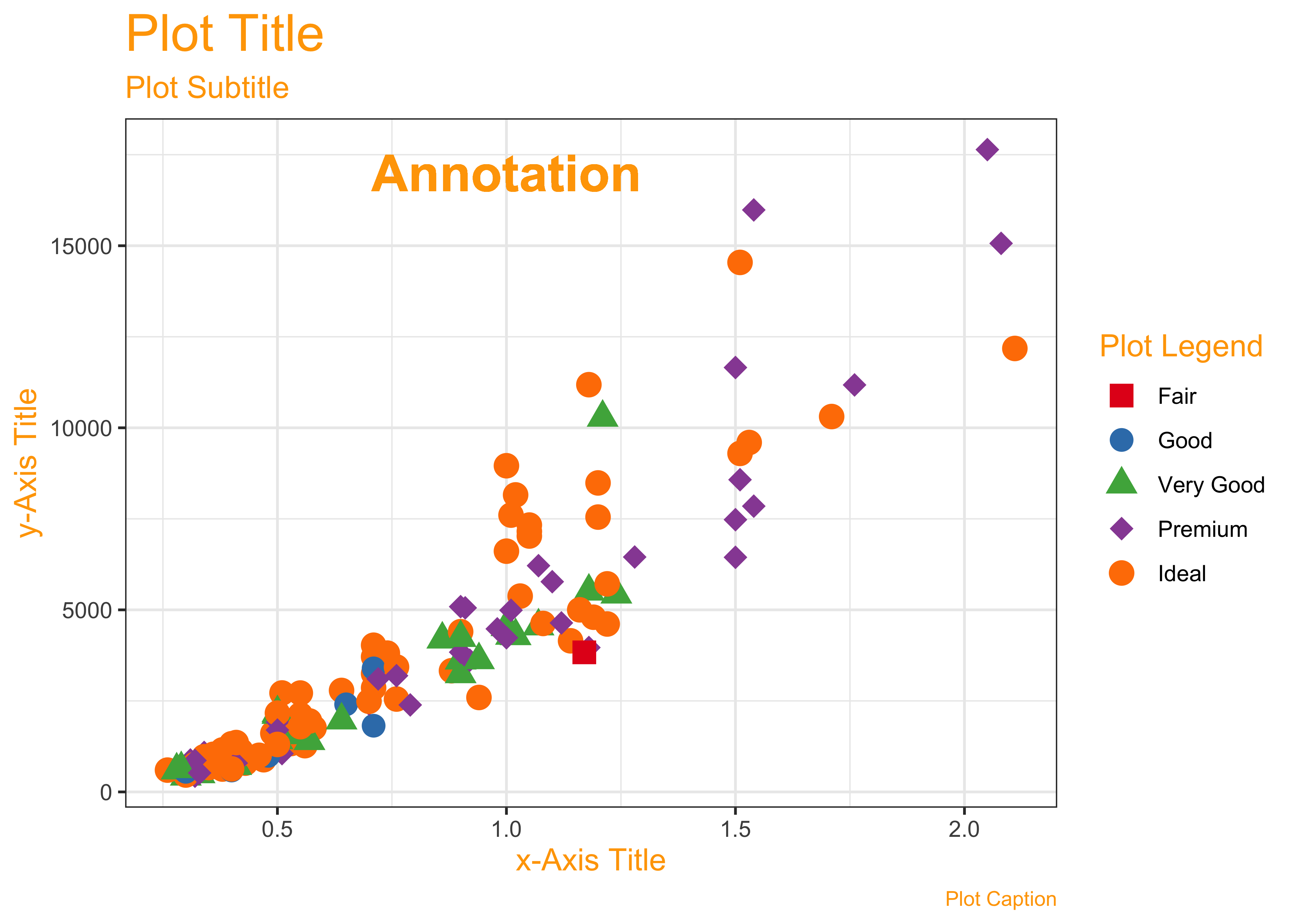

Figure 7: Common Geometric Aesthetics in Charts

Mapping

What does this “mapping” mean? That the geometric aesthetics are used to represent qualitative or quantitative variables from your data, by varying in accordance to the data variable.

For instance, length or height of a bar can be made proportional to theage or income of a person. Colour of points can be mapped to gender, with a unique colour for each gender. Position along an axis x can vary in accordance with a height variable and position along the y axis can vary with a bodyWeight variable.

A chart may use more than one aesthetic: position, shape, colour, height and angle,pattern or texture to name several. Usually, each aesthetic is mapped to just one variable to ensure there is no cognitive error. There is of course a choice and you should be able to map any kind of variable to any geometric aspect/aesthetic that may be available.

NoteA Natural Mapping

Note that here is also a “natural” mapping between aesthetic and [kind of variable] Section 5, Quantitative or Qualitative. For instance, shape is rarely mapped to a Quantitative variable; we understand this because the nature of variation between the Quantitative variable and the shape aesthetic is not similar (i.e. not continuous). Bad choices may lead to bad, or worse, misleading charts!

In the above chart, it is pretty clear what kind of variable is plotted on the x-axis and the y-axis. What about colour? Could this be considered a z-axis in the chart? There are also other aspects that you can choose (not explicitly shown here) such as the plot theme(colours, fonts, backgrounds etc), which may not be mapped to data, but are nonetheless choices to be made. We will get acquainted with this aspect as we build charts.

Basic Types of Charts

We can think of simple visualizations as combinations of aesthetics, mapped to combinations of variables. Some examples:

Geometries , Combinations, and Graphs

Variable #1	Variable #2	Chart Names	Chart Shape
Quant	None	Histogram and Density
Qual	None	Bar Chart
Quant	Quant	Scatter Plot, Line Chart, Bubble Plot, Area Chart
Quant	Qual	Pie Chart, Donut Chart, Column Chart, Box-Whisker Plot, Radar Chart, Bump Chart, Tree Diagram, Choropleth and Symbol Maps
Qual	Qual	Stacked Bar Chart, Mosaic Chart, Sankey, Chord Diagram, Network Diagram

Conclusion

So there we have it:

• Questions lead to Types of Variables (Quant and Qual)

• Further Questions lead to relationships between them, which we describe using Data Visualizations

• Data Visualizations are Data mapped onto Geometry
• Multiple Variable-to-Geometry Mappings = A Complete Data Visualization


You might think of all these Questions, Answers, Mapping as being equivalent to metaphors as a language in itself. So creating a chart is like stacking up a set of metaphors.

References

1. Randomized Trials:


2. Martyn Shuttleworth, Lyndsay T Wilson (Jun 26, 2009). What is the Scientific Method? Retrieved Mar 12, 2024 from Explorable.com: https://explorable.com/what-is-the-scientific-method

3. https://safetyculture.com/topics/design-of-experiments/

4. Open Intro Stats: Types of Variables


5. Lock, Lock, Lock, Lock, and Lock. Statistics: Unlocking the Power of Data, Third Edition, Wiley, 2021. https://www.wiley.com/en-br/Statistics:+Unlocking+the+Power+of+Data,+3rd+Edition-p-9781119674160)


6. Claus Wilke. Fundamentals of Data Visualization. https://clauswilke.com/dataviz/

7. Tim C. Hesterberg (2015). What Teachers Should Know About the Bootstrap: Resampling in the Undergraduate Statistics Curriculum, The American Statistician, 69:4, 371-386, DOI:10.1080/00031305.2015.1089789. PDF here

Footnotes

1. https://www.xcode.in/genes-and-personality/how-genes-influence-your-math-ability/

2. How might this data have been obtained? By asking people in a survey and getting Yes/No answers!

3. Qualitative variables are called Factor variables in R, and are stored, internally, as numeric variables together with their levels. The actual values of the numeric variable are 1, 2, and so on.
