Abstract

Grouping, Filtering, and Summarizing Time Series Data

Using web-R

This tutorial uses web-r that allows you to run all code within your browser, on all devices. Most code chunks herein are formatted in a tabbed structure (like in an old-fashioned library), with duplicated code. The tabs in front have regular R code that will work when copy-pasted in your RStudio session. The tab “behind” has the web-R code that can work directly in your browser, and can be modified as well. The R code is also there to make sure you have original code to go back to, when you have made several modifications to the code on the web-r tabs and need to compare your code with the original! If you have messed up the code there, then you can hit the “recycle” button on the web-r tab to go back to the original!

Keyboard Shortcuts

• Run selected code using either:
  • macOS: ⌘ + ↩︎/Return
  • Windows/Linux: Ctrl + ↩︎/Enter
• Run the entire code by clicking the “Run code” button or pressing Shift+↩︎.

Setting up R Packages

knitr::opts_chunk$set(tidy = "styler")
library(mosaic)
library(tidyverse)
library(ggformula) # Our Formula based graphing package
library(scales) # Some nice time-oriented scales in graphs!
library(tsibble)
library(timetk)

# Datasets
library(tsibbledata)

Introduction

We have now arrived at the need to start from raw, multiple time series data and filter, group, and summarize these time series grasp their meaning, a process known as “wrangling”.

Wrangling with dplyr

The tutorial for wrangling using dplyr is here.

Here, we will first use the births data we encountered earlier which had a single time series, and then proceed to a more complex example which has multiple time-series.

Time-Series Wrangling

We can do this in two ways, and with two packages:

Two Wrangling “Dimensions”

For all the above operations, we can either use time variable as the basis, by filtering for specific periods, or computing summaries over larger intervals of time e.g. month, quarter, year;

AND/OR

We can do the same over space variables, i.e. the Qualitative variables that define individual time series, and based on which we can filter and and analyze these specific time series. Each unique setting of these Qualitative variables could potentially define a time series! There are 336 groups/combinations of them in PBS, but not all are unique time series, since some of the Qual variables are nested inside others, e.g ATC1_desc provides more info on each value of ATC1 and is not truly a separate Qual variable.

And the packages are:

tsibble has dplyr-like functions

Using tsibble data, the tsibble package has specialized filter and group_by functions to do with the index (i.e time) variable and the key variables, such as index_by() and group_by_key().

(Filtering based on Qual variables can be done with dplyr. We can use dplyr functions such as group_by, mutate(), filter(), select() and summarise() to work with tsibble objects.)

timetk also has dplyr-like functions!

Using tibbles, timetk provides functions such as summarize_by_time, filter_by_time and slidify that are quite powerful. Again, as with tsibble, dplyr can always be used for other Qual variables (i.e non-time).

Case Study #1: Births Dataset

As a second example let us read and inspect in the now familiar US births data from 2000 to 2014. Download this data by clicking on the icon below, and saving the downloaded file in a sub-folder called data inside your project.

R

# Step1: Read the data
births_2000_2014 <- read_csv("https://raw.githubusercontent.com/fivethirtyeight/data/master/births/US_births_2000-2014_SSA.csv")

Let us make a date column out of the individual year/month/day columns:

# Step2: Convert year + month + date_of_month to "date"
births_timeseries <-
  births_2000_2014 %>%
  mutate(date = lubridate::make_date(year = year,
                                     month = month,
                                     day = date_of_month)) %>%
  select(date, births)

births_timeseries
class(births_timeseries)

Note that this is still just a tibble, with a time-formatted column. Next let us create a full-blown tsibble with the same data:

[1] "tbl_df"     "tbl"        "data.frame"

# Step3: Convert to tsibble
# combine the year/month/date_of_month columns into a date
# drop them thereafter
births_tsibble <-
  births_2000_2014 %>%
  mutate(index = lubridate::make_date(year = year,
                                      month = month,
                                      day = date_of_month)) %>%
  tsibble::as_tsibble(index = index) %>%
  select(index, births)

births_tsibble
class(births_tsibble)

Both data frames look identical, except for data class difference. This is DAILY data of course.

[1] "tbl_ts"     "tbl_df"     "tbl"        "data.frame"

We will (sadly) need both formats; the tsibble packages needs, well, tsibble-formats, and timetk cannot, it seems, handle tsibble-formats and needs regular tibbles. Sigh.

web-r

Basic Time Series Plot

Let us plot the timeseries using the tsibble data, with both ggformula and timetk:

R

Let us try a basic plot with both tsibble vs timetk packages.

#column: body-outset-right
# Set graph theme
theme_set(new = theme_custom())
#
births_tsibble %>%
  gf_line(births ~ index,
          data = .,
          title = "Basic tsibble plotted with ggformula")
# timetk **can** plot tsibbles.
births_tsibble %>%
  timetk::plot_time_series(.date_var = index,
                           .value = births, .interactive = FALSE,
                           .title = "Tsibble Plotted with timetk")

web-r

Aggregation and Averaging

Let us plot the time series using the tsibble data, with both ggformula and timetk, this time grouping by month and get monthly aggregates to get a summary:

R

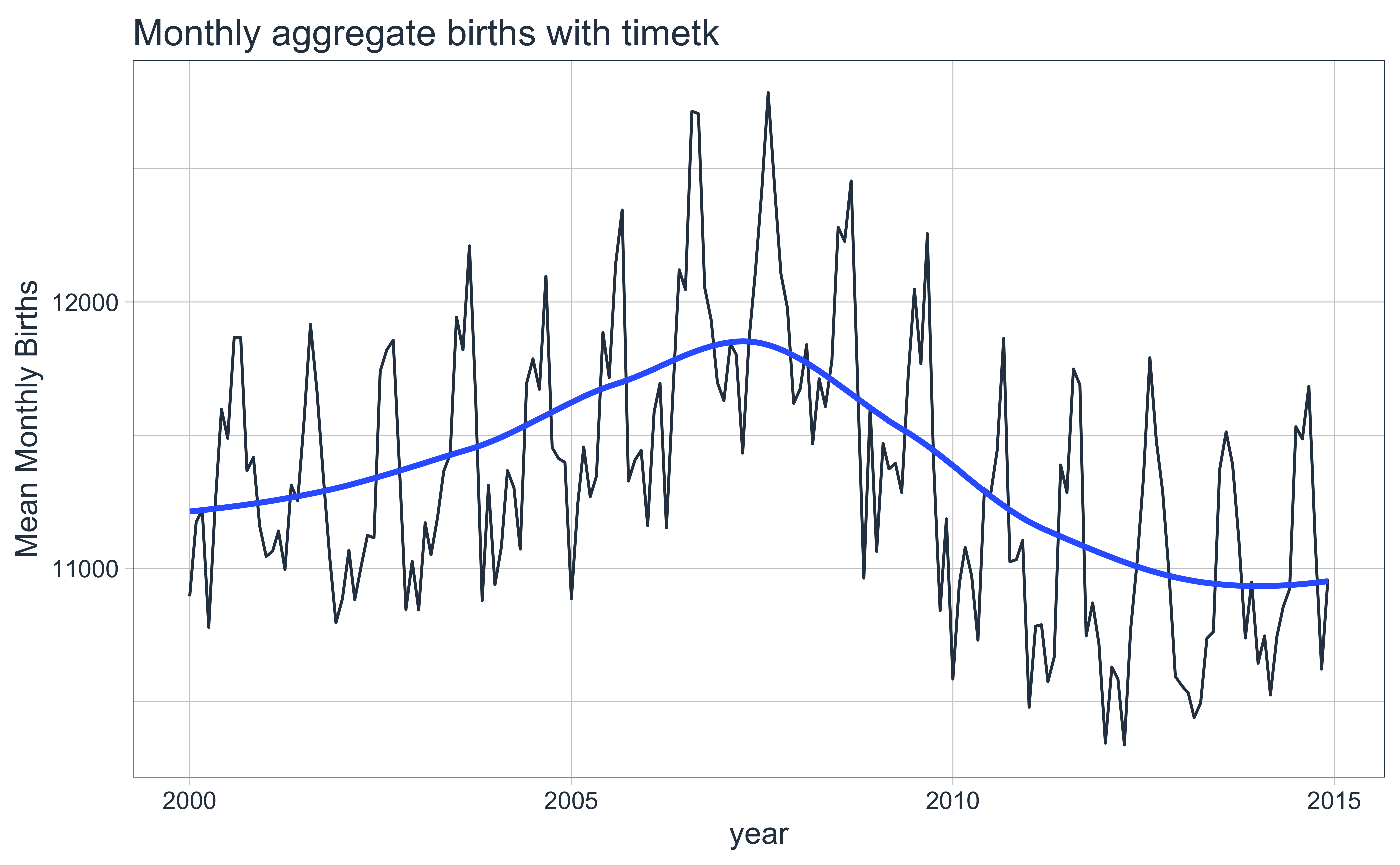

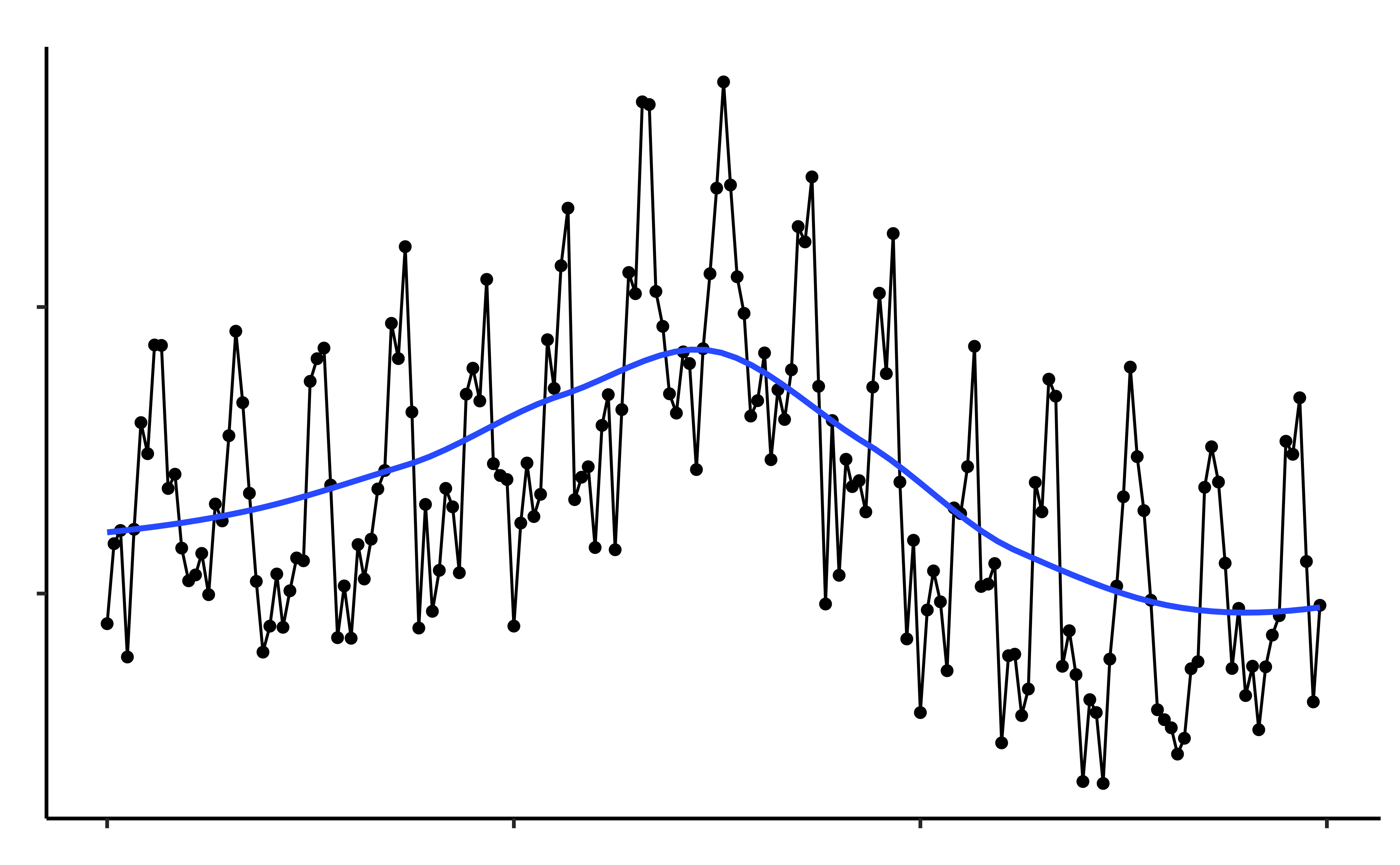

Here we plot Monthly Aggregates with both ggformula and timetk:

# Set graph theme
theme_set(new = theme_custom())
##
births_tsibble %>%
  tsibble::index_by(month_index = ~ tsibble::yearmonth(.)) %>%
  dplyr::summarise(mean_births = mean(births, na.rm = TRUE)) %>%
  gf_point(mean_births ~ month_index,
           data = .,
           title = "Monthly Aggregate with tsibble + ggformula") %>%
  gf_line() %>%
  gf_smooth(se = FALSE, method = "loess")  %>%
  gf_labs(x = "Year", y = "Mean Monthly Births")

##
##
##
##
births_timeseries %>%

  # cannot use tsibble here
  # tsibble format cannot be summarized/wrangled by timetk

  timetk::summarize_by_time(.date_var = date,
                            .by = "month",
                            month_mean = mean(births)) %>%
  timetk::plot_time_series(date, month_mean,
                           .title = "Monthly aggregate births with timetk",
                           .interactive = FALSE,
                           .x_lab = "year",
                           .y_lab = "Mean Monthly Births")

web-r

Apart from the bump during in 2006-2007, there are also seasonal trends that repeat each year, which we glimpsed earlier. We will analyse seasonal trends in another module.

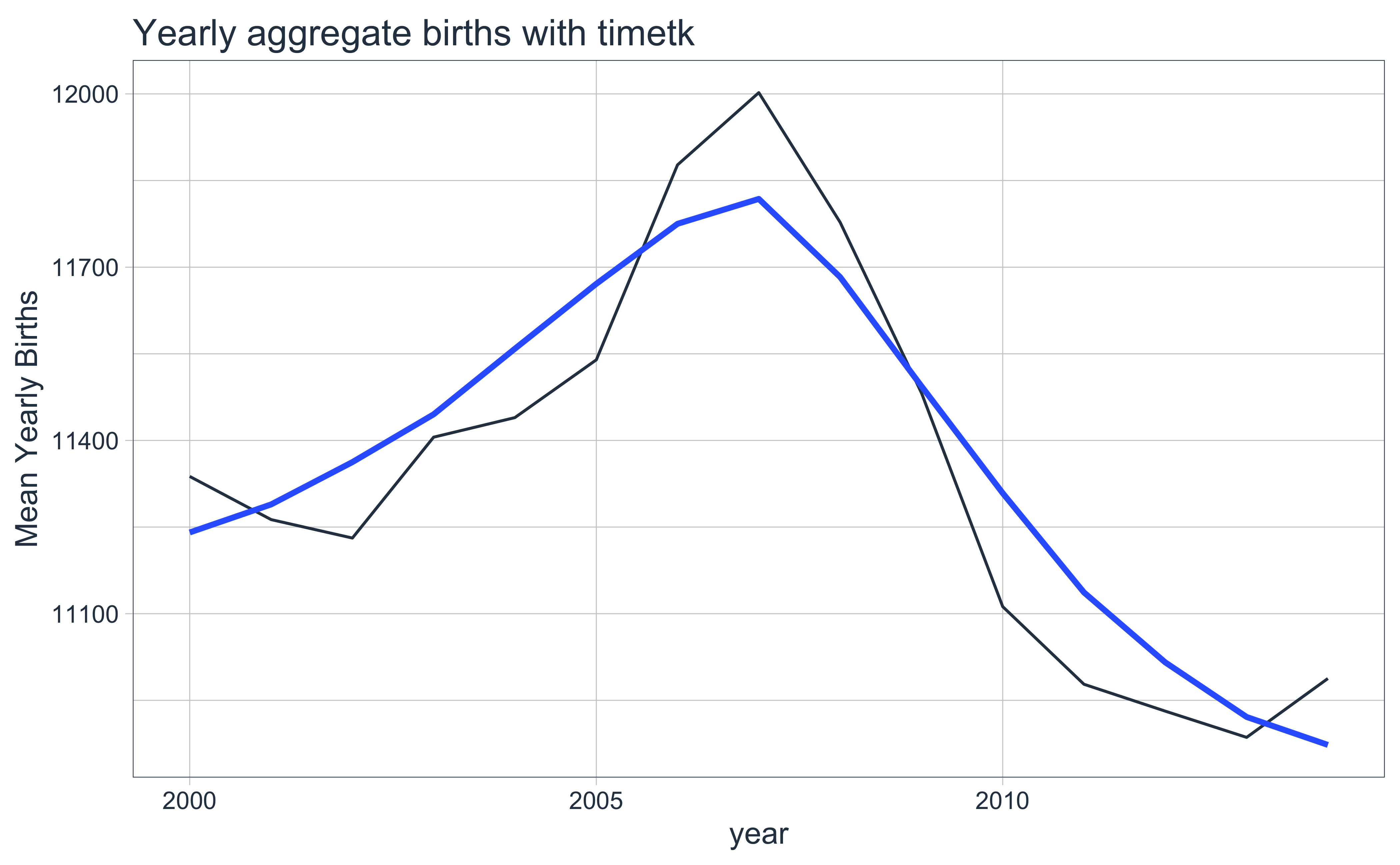

Let us try getting annual aggregates.

R

# Set graph theme
theme_set(new = theme_custom())

births_tsibble %>%
  tsibble::index_by(year_index = ~ lubridate::year(.)) %>%
  ## tsibble does not have a "year" function? So using lubridate..
  ## Summarize
  dplyr::summarise(mean_births = mean(births, na.rm = TRUE)) %>%
  ##Plot
  gf_point(mean_births ~ year_index, data = .) %>%
  gf_line() %>%
  gf_smooth(se = FALSE, method = "loess")
##
##
##
##
##
births_timeseries %>%
  ## Summarize
  timetk::summarise_by_time(.date_var = date,
                            .by = "year",
                            mean = mean(births)) %>%
  ## Plot
  timetk::plot_time_series(date, mean,
                           .title = "Yearly aggregate births with timetk",
                           .interactive = FALSE,
                           .x_lab = "year",
                           .y_lab = "Mean Yearly Births")

web-r

A small detour

Ah yes….errors. There is a curious interplay between dplyr and tsibble…they play together but not all the time, it would seem.

The original births tibble dataset allows dplyr:group_by + summarize:

# The original dataset allows dplyr:group_by + summarize
births_2000_2014 %>%
  dplyr::group_by(year) %>%
  summarise(mean_births = mean(births, na.rm = TRUE))

However, tsibble-converted data does not quite work with dplyr::group_by+summarize:

```{r}
#| label: Errors-2
#| eval: false

# This code will not work
births_tsibble %>%
# Grouping does not work. Here is the problem
  dplyr::group_by(index) %>%

# Trying to get Annual Birth Average as before
# Should give 15 rows, one per year, but does not!
  summarise(mean_births = mean(births, na.rm = TRUE))
```

Even if we pull out the year information in index, it gives confusing results…

births_tsibble %>%
# All right, try to pull the year info from `index` then
  mutate(dplyr_year = lubridate::year(index)) %>%
# Grouping does not work
  dplyr::group_by(dplyr_year) %>%

# Trying to get Annual Birth Average as before
# Should give 15 rows, one per year, but does not!
  summarise(mean_births = mean(births, na.rm = TRUE))

This grouping does not give a proper result (though it does show 15 groups.)

Using tsibble::index_by() and then dplyr::summarize() does the trick…so all right. The index_by() operation is different from that of dplyr::group_by()!

# tsibble works with index_by + summarize
# 15 rows, one for each year
births_tsibble %>%
  # tsibble can get year info from index
  tsibble::index_by(year_date = year(index)) %>%
  dplyr::summarise(mean_births = mean(births, na.rm = TRUE))

Candle-Stick Plots

Hmm…can we try to plot boxplots over time (Candle-Stick Plots)? Over month, quarter or year?

Monthly Box Plots

R

# Set graph theme
theme_set(new = theme_custom())

births_tsibble %>%
  index_by(month_index = ~ yearmonth(.)) %>%
  # 15 years
  # No need to summarise, since we want boxplots per year / month
  # Plot the groups
  # 180 plots!!
  gf_boxplot(births ~ index, group =  ~ month_index,
             fill = ~ month_index,
             data = .,
             title = "Boxplots of Births by Month",
             caption = "tsibble + ggformula")


####
####
####
####
births_tsibble %>% # Can try births_timeseries too
  timetk::plot_time_series_boxplot(
              index, births,
             .period = "month",
             .plotly_slider = TRUE,
             .title = "Boxplots of Births by Month",
             .interactive = TRUE,
             .x_lab = "year",
             .y_lab = "Mean Monthly Births"
                                   )

timetk can take tsibble-format data to plot with, but cannot perform aggregation: summarize_by_time() will throw an error!

web-r

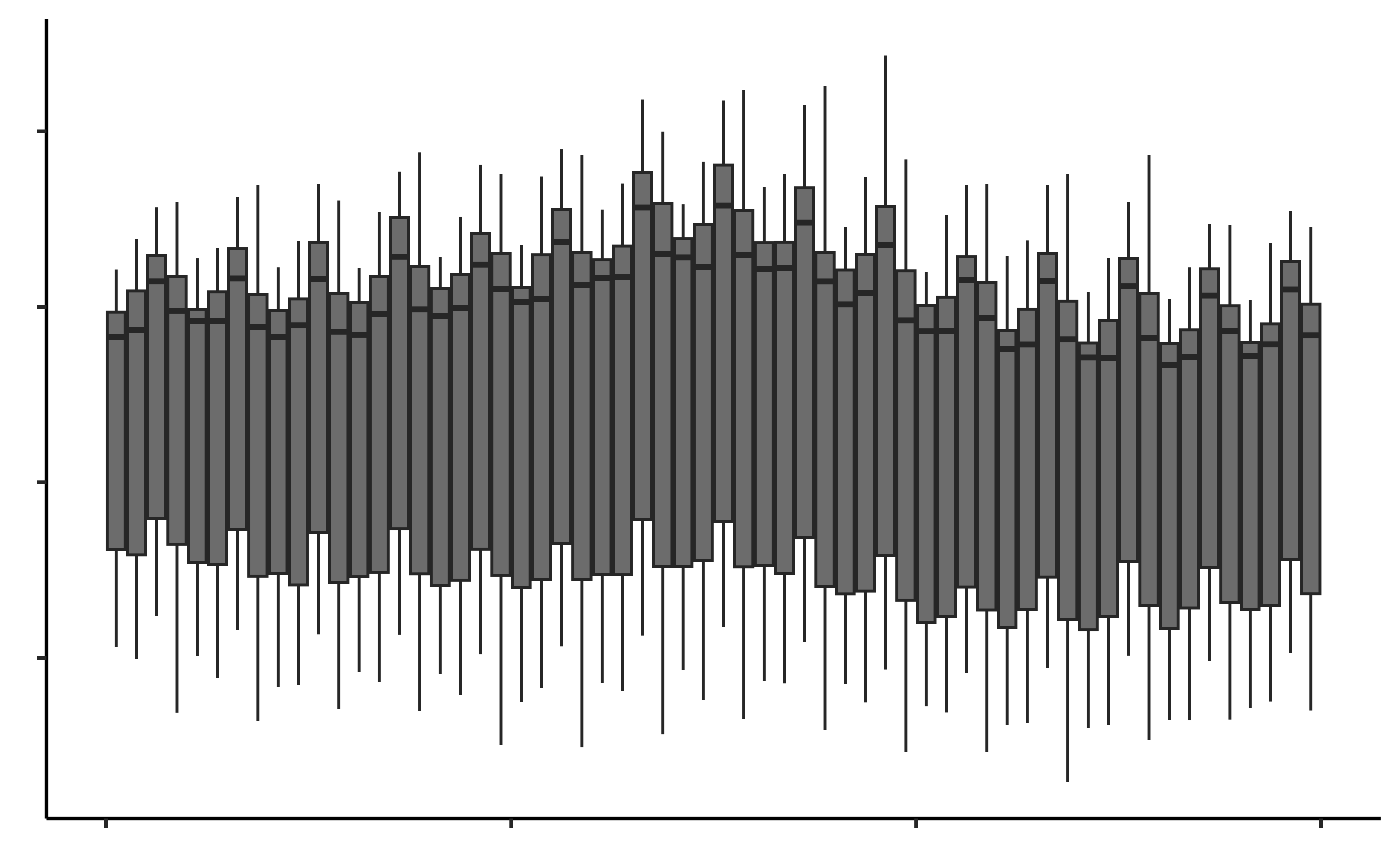

We see 180 boxplots…yes this is still too busy a plot for us to learn much from.

Quarterly boxplots

R

# Set graph theme
theme_set(new = theme_custom())

births_tsibble %>%
  index_by(qrtr_index = ~ yearquarter(.)) %>% # 60 quarters over 15 years
  # No need to summarise, since we want boxplots per year / month
  gf_boxplot(births ~ index,
             group = ~ qrtr_index,
             fill = ~ qrtr_index,
             data = .) # 60 plots!!
###
###
###
###
###

births_tsibble %>% # Can try births_timeseries too
  timetk::plot_time_series_boxplot(
               index, births,
              .period = "quarter",
              .title = "Quarterly births with timetk",
              .interactive = TRUE,
              .plotly_slider = TRUE,
              .x_lab = "year",
              .y_lab = "Mean Quarterly Births")

web-r

We have 60 boxplots…over a period of 15 years, one box plot per quarter…

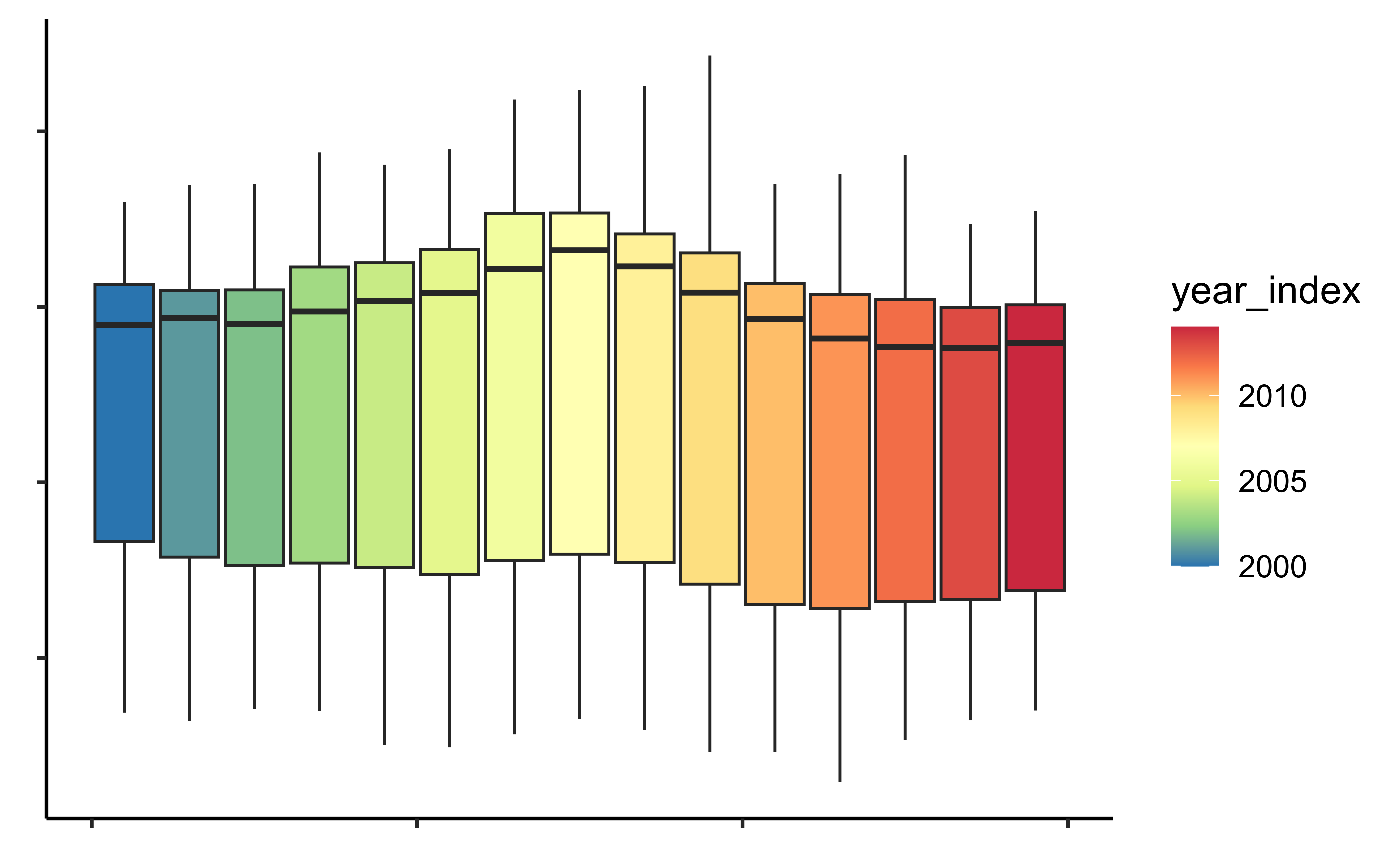

Yearwise boxplots

R

# Set graph theme
theme_set(new = theme_custom())

births_tsibble %>%
  index_by(year_index = ~ lubridate::year(.)) %>% # 15 years, 15 groups
  # No need to summarise, since we want boxplots per year / month

  gf_boxplot(births ~ index,
              group = ~ year_index,
              fill = ~ year_index,
             data = .) %>%  # plot the groups 15 plots
  gf_theme(scale_fill_distiller(palette = "Spectral"))
####
####
####
####
####
####

births_tsibble %>%
  timetk::plot_time_series_boxplot(
              index, births, .period = "year",
              .title = "Yearly aggregate births with timetk",
              .interactive = TRUE,
              .plotly_slider = TRUE,
              .x_lab = "year",
              .y_lab = "Births")

web-r

This looks much better…We can more easily see that 2006-2009 the births were somewhat higher, because the medians in these years are the highest.

Case Study #2: PBS Dataset

We previously encountered the PBS dataset from the tsibbledata package earlier, which is a dataset containing Monthly Medicare prescription data in Australia. We will resume from there:

R

data("PBS", package = "tsibbledata")
PBS

glimpse(PBS)

Rows: 67,596
Columns: 9
Key: Concession, Type, ATC1, ATC2 [336]
$ Month      <mth> 1991 Jul, 1991 Aug, 1991 Sep, 1991 Oct, 1991 Nov, 1991 Dec,…
$ Concession <chr> "Concessional", "Concessional", "Concessional", "Concession…
$ Type       <chr> "Co-payments", "Co-payments", "Co-payments", "Co-payments",…
$ ATC1       <chr> "A", "A", "A", "A", "A", "A", "A", "A", "A", "A", "A", "A",…
$ ATC1_desc  <chr> "Alimentary tract and metabolism", "Alimentary tract and me…
$ ATC2       <chr> "A01", "A01", "A01", "A01", "A01", "A01", "A01", "A01", "A0…
$ ATC2_desc  <chr> "STOMATOLOGICAL PREPARATIONS", "STOMATOLOGICAL PREPARATIONS…
$ Scripts    <dbl> 18228, 15327, 14775, 15380, 14371, 15028, 11040, 15165, 168…
$ Cost       <dbl> 67877.00, 57011.00, 55020.00, 57222.00, 52120.00, 54299.00,…

# inspect(PBS) # does not work since mosaic cannot handle tsibbles
# skimr::skim(PBS) # does not work, need to investigate

web-r

Counts by Qual variables

Let us first see how many observations there are for each combo of keys:

R

## Types
PBS %>%
  dplyr::count(Type) # 2 Types

## Concessions
PBS %>% count(Concession) # 2 Types

## ATC1
PBS %>% count(ATC1) # 15 ATC1 groups

## ATC2
PBS %>% count(ATC2) # 84 ATC2 groups

# dplyr grouping with ATC1 and ATC2
PBS %>%
  dplyr::group_by(ATC1, ATC2) %>%
  count() # Still 84; ATC2 is nested in ATC1

## All possible groups
PBS %>%
  group_by(ATC1, ATC2, Concession, Type) %>%
  count() # 336 overall groups

web-r

Data Dictionary for PBS

This is a large-ish dataset: (Run PBS in your console)

• 67K observations

• Quant Variables: Two Quant variables (Scripts and Cost)

• Time Variable:

  • Data appears to be monthly, as indicated by the 1M.
  • the time index variable is called Month
  • formatted as yearmonth, a new type of variable introduced in the tsibble package. yearmonth does not show in glimpse output!

• Qual variables:

  • Concession: Concessional and General (Concessional scripts are given to pensioners, unemployed, dependents, and other card holders)
  • Type: Co-payments and Safety Net
  • ATC1: Anatomical Therapeutic Chemical index (level 1).
    • 15 types

• ATC2: Anatomical Therapeutic Chemical index (level 2).

  • 84 types, nested inside ATC1.

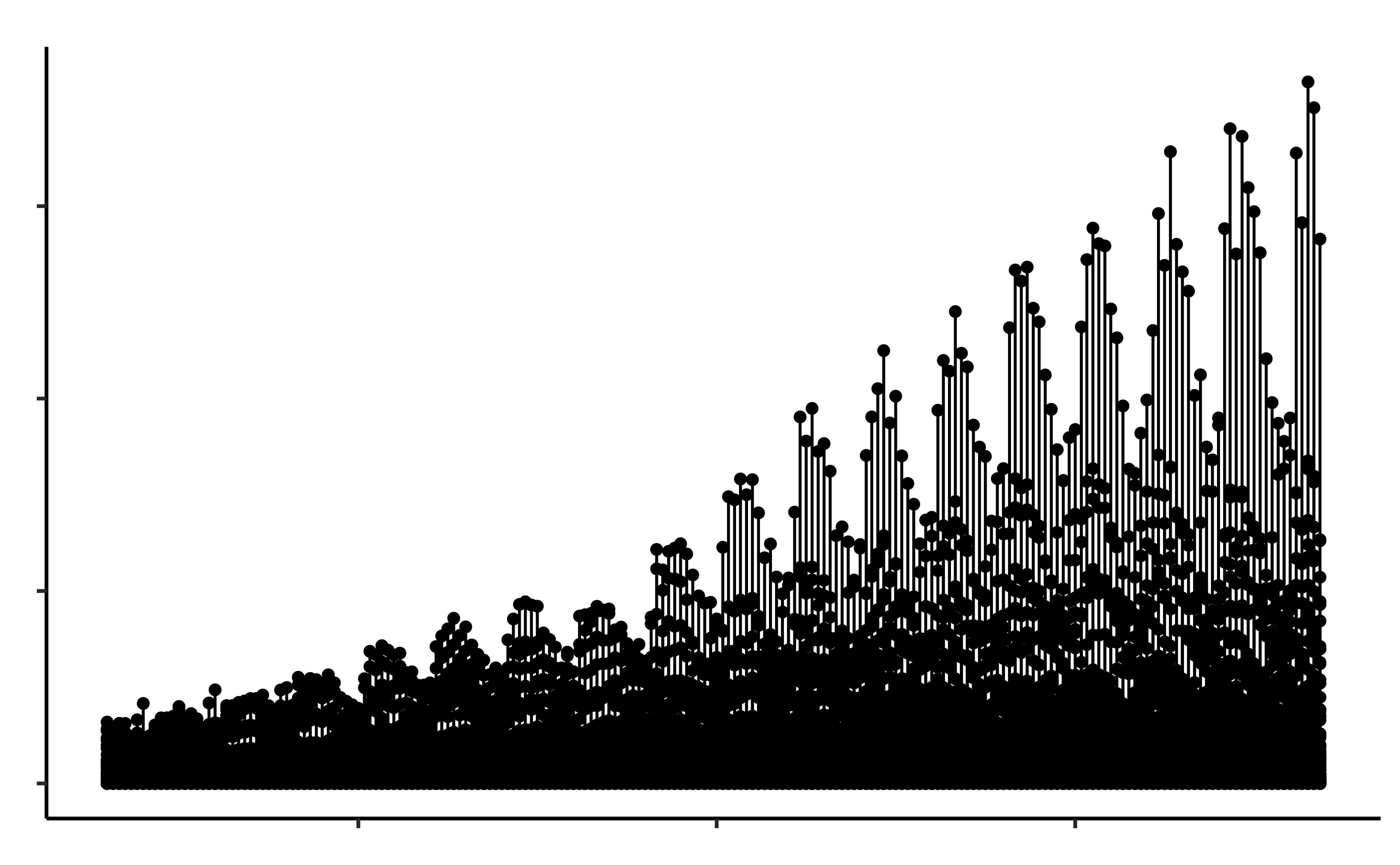

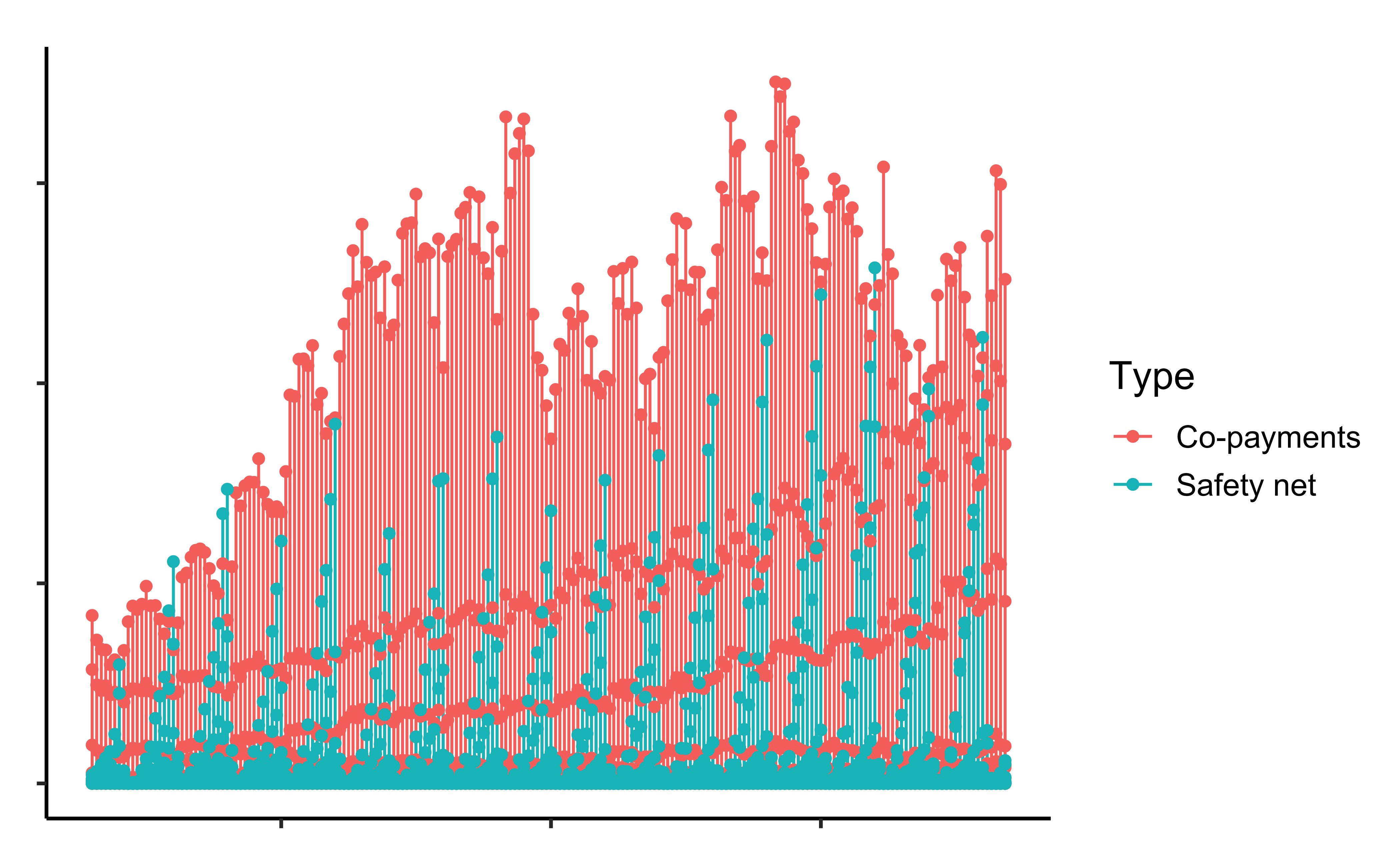

We will start with the familiar basic messy plot, and work our way towards filtering, summaries, and averages.

R

# Set graph theme
theme_set(new = theme_custom())

PBS %>%
  gf_point(Cost ~ Month, data = .) %>%
  gf_line(title = "PBS Costs vs time",
          caption = "ggformula")

web-r

As noted earlier, this basic plot is quite messy. Other than an overall rising trend and more vigorous variations pointing to a multiplicative process, we cannot say more. There is simply too much happening here and it is now time (sic!) for us to look at summaries of the data using dplyr-like verbs. We will perform summaries with tsibble and plots with ggformula first. Then we will use timetk to perform both operations.

R

# Set graph theme
theme_set(new = theme_custom())

# Costs variable for a specific combo of Qual variables(keys)
PBS %>%
  dplyr::filter(Concession == "General",
                ATC1 == "A") %>%
  gf_line(Cost ~ Month,
          colour = ~ Type,
          data = .) %>%

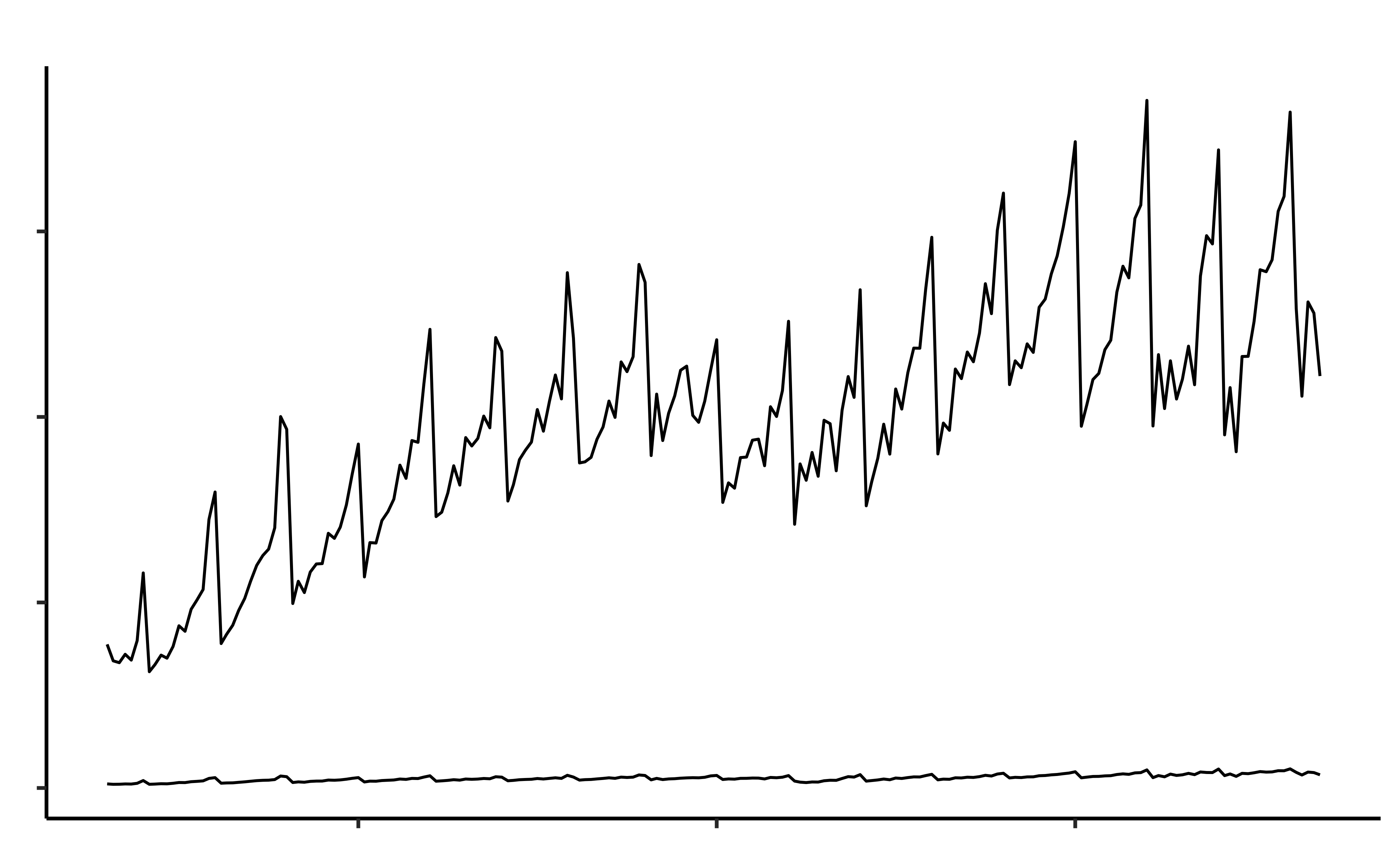

  gf_point(title = "Costs per Month for General A category patients") %>%
  gf_refine(scale_y_continuous(labels = scales::label_comma()))

web-r

Insights

As can be seen:

• strongly seasonal for both Types of graphs;
• seasonal variation increasing over the years, a clear sign of a multiplicative time series, especially for Safety net.
• Upward trend with both types of subsidies, Safety net and Co-payments.
• Co-payments type have some kind of dip around the year 2000…
• But this is still messy and overwhelming and we could certainly use some summaries/aggregates/averages.

We can now use tsibble’s dplyr-like commands to develop summaries by year, quarter, month(original data): Look carefully at the new time variable created each time, and the size the data frame decrease with each aggregation:

R

# Cost Summary by Month, which is the original data
# New Variable Name to make grouping visible
PBS_month <-  PBS %>%
  dplyr::filter(Concession == "General",
                ATC1 == "A") %>%
  tsibble::index_by(Month_Date = Month) %>%
  dplyr::summarise(
            across(.cols = c(Cost, Scripts),
                   .fn = mean,
                   .names = "mean_{.col}"))

PBS_month

# Set graph theme
theme_set(new = theme_custom())
PBS_month %>%
  mutate(Month_Date = as_date(Month_Date)) %>%
  gf_line(mean_Cost ~ Month_Date) %>%
  gf_line(mean_Scripts ~ Month_Date,
          title = "Mean Costs and Scripts for General + A category",
          subtitle = "Means over General + A category ") %>%
  gf_refine(scale_y_continuous(labels = scales::label_comma()))

web-r

Insights

As can be seen: To Be Written Up !!!

R

# Cost Summary by Quarter
PBS_quarter <-
  PBS %>%
  tsibble::index_by(Quarter_Date = yearquarter(Month)) %>% # And the change here!
  dplyr::summarise(across(.cols = c(Cost, Scripts),
                          .fn = mean,
                          .names = "mean_{.col}"))
PBS_quarter

# Set graph theme
theme_set(new = theme_custom())
#
PBS_quarter %>%
  gf_line(mean_Cost ~ Quarter_Date) %>%
  gf_refine(scale_y_continuous(labels = scales::label_comma()))

web-r

Insights

As can be seen: TBD

R

# Cost Summary by Year
PBS_year <- PBS %>%
  index_by(Year_Date = year(Month)) %>% # Note this change!!!
  dplyr::summarise(across(.cols = c(Cost, Scripts),
                          .fn = mean,
                          .names = "mean_{.col}"))
PBS_year

# Set graph theme
theme_set(new = theme_custom())
#
PBS_year %>%
  gf_line(mean_Cost ~ Year_Date) %>%
  gf_refine(scale_y_continuous(labels = scales::label_comma()))

web-r

Insights

As can be seen: TBD. I must write this up soon!

Using timetk

The time variable for timetk

The PBS-derived tsibbles have their “time-oriented” variables formatted asyearmonth,yearquarter and dbl, as seen. We need to mutate these into a proper date format for the timetk package to summarise them successfully. (Plotting a tsibble with timetk is possible, as seen earlier.)

R

# Set graph theme
theme_set(new = theme_custom())

PBS %>%
  mutate(Month_Date = lubridate::as_date(Month)) %>%
##

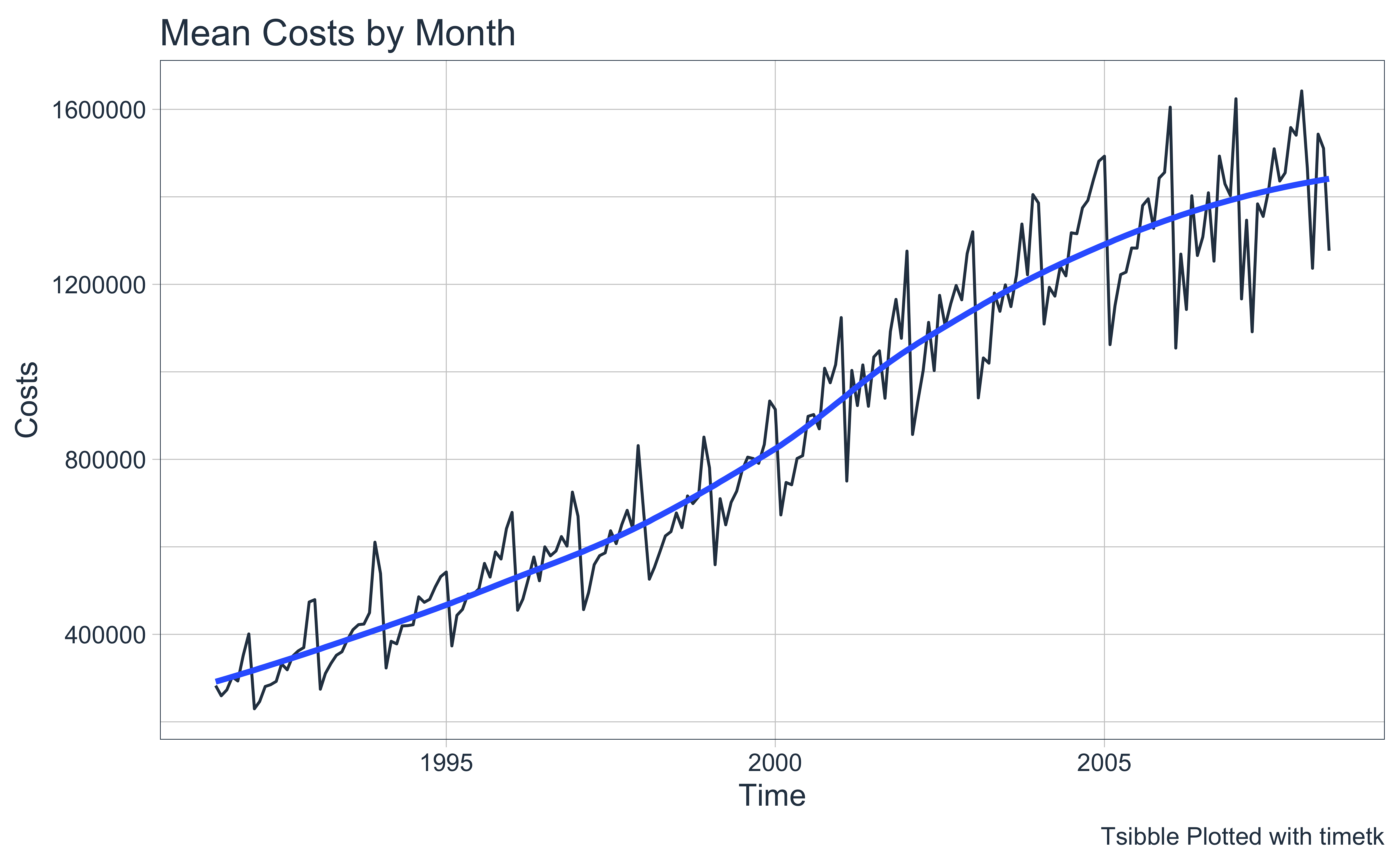

  timetk::summarise_by_time(
    .date_var = Month_Date,
    .by = "month",
    mean_Cost = mean(Cost)) %>%
##
  timetk::plot_time_series(
    .date_var = Month_Date,
    .value = mean_Cost,
    .interactive = FALSE,
    .x_lab = "Time", .y_lab = "Costs",
    .title = "Mean Costs by Month") +
  labs(caption = "Tsibble Plotted with timetk")

web-r

R

# Set graph theme
theme_set(new = theme_custom())

PBS %>%
  mutate(Month_Date = lubridate::as_date(Month)) %>%
  as_tibble() %>%
  ##
  timetk::summarise_by_time(.date_var = Month_Date,
                            .by = "quarter",
                            mean_Cost = mean(Cost)) %>%
  ##
  timetk::plot_time_series(.date_var = Month_Date,
                           .value = mean_Cost,
                           .interactive = FALSE,
                           .x_lab = "Time", .y_lab = "Costs",
                           .title = "Mean Costs by Quarter") +
  labs(caption = "Tsibble Plotted with timetk")

web-r

R

# Set graph theme
theme_set(new = theme_custom())
PBS %>%
  mutate(Month_Date = lubridate::as_date(Month)) %>%
  as_tibble() %>%
  ##

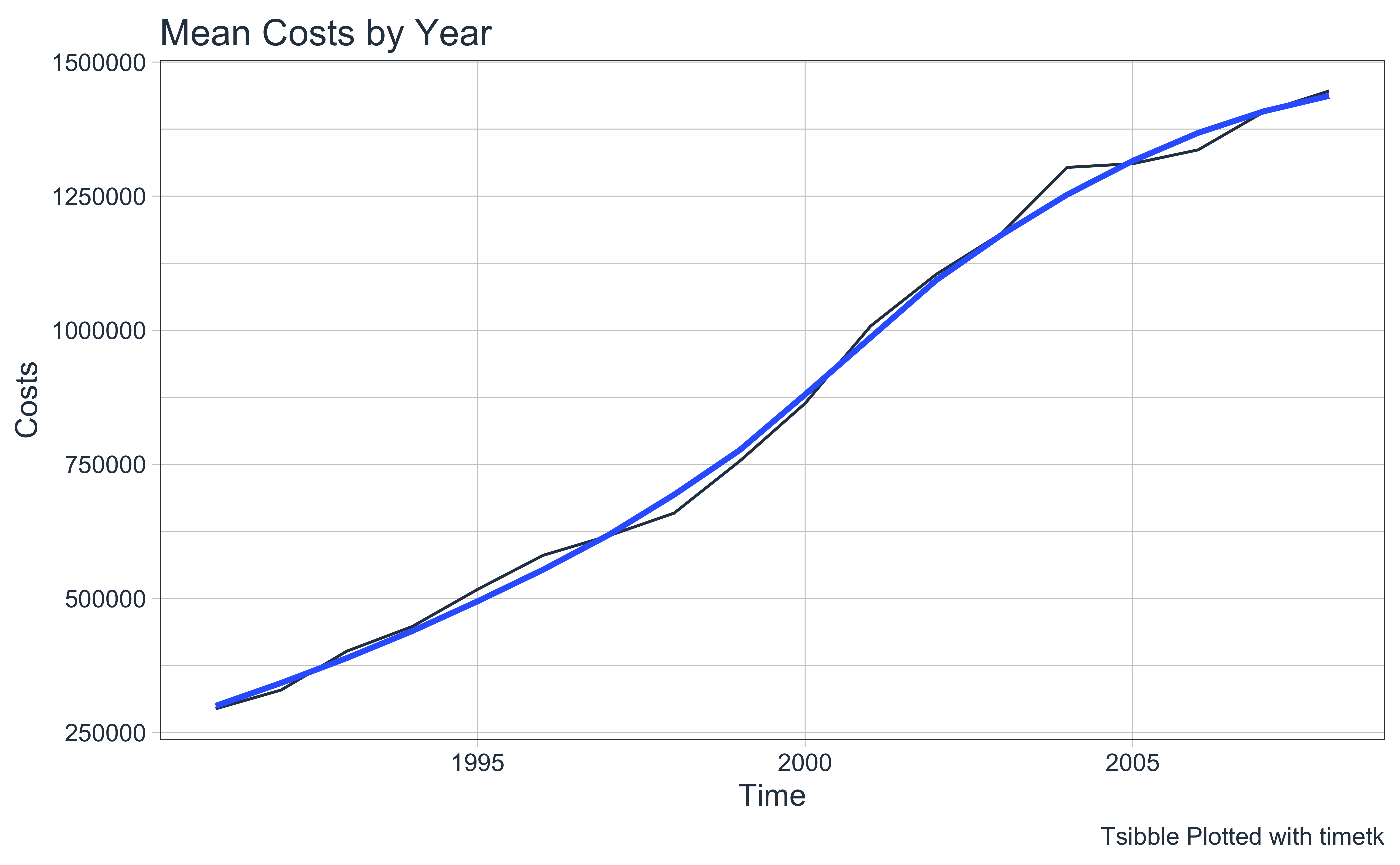

  timetk::summarise_by_time(.date_var = Month_Date,
                            .by = "year",
                            mean_Cost = mean(Cost)) %>%
  ##
  timetk::plot_time_series(.date_var = Month_Date,
                           .value = mean_Cost,
                           .interactive = FALSE,
                           .x_lab = "Time", .y_lab = "Costs",
                           .title = "Mean Costs by Year") +
  labs(caption = "Tsibble Plotted with timetk")

web-r

Conclusion

We have learnt how to filter, summarize and compute various aggregate metrics from them and to plot these. Both tsibble and timetk offer similar capability here.

Your Turn

1. Choose some of the data sets in the tsdl and in the tsibbledata packages. Plot basic, filtered and summarized graphs for these and interpret.

References

1. Robert Hyndman, Forecasting: Principles and Practice (Third Edition). available online

2. Time Series Analysis at Our Coding Club


R Package Citations

Package	Version	Citation
gapminder	1.0.0	Bryan (2023)
timetk	2.9.0	Dancho and Vaughan (2023)
tsibble	1.1.5	Wang, Cook, and Hyndman (2020)
tsibbledata	0.4.1	O’Hara-Wild et al. (2022)

Bryan, Jennifer. 2023. gapminder: Data from Gapminder. https://CRAN.R-project.org/package=gapminder.

Dancho, Matt, and Davis Vaughan. 2023. timetk: A Tool Kit for Working with Time Series. https://CRAN.R-project.org/package=timetk.

O’Hara-Wild, Mitchell, Rob Hyndman, Earo Wang, and Rakshitha Godahewa. 2022. tsibbledata: Diverse Datasets for “tsibble”. https://CRAN.R-project.org/package=tsibbledata.

Wang, Earo, Dianne Cook, and Rob J Hyndman. 2020. “A New Tidy Data Structure to Support Exploration and Modeling of Temporal Data.” Journal of Computational and Graphical Statistics 29 (3): 466–78. https://doi.org/10.1080/10618600.2019.1695624.
